Home » Fiber Optic Cable » Simplex » OS2 SC Simplex Cable » LC/APC to SC/APC Simplex Single-Mode LSZH Steel Shielded Optical Fiber Cable (Ref:3550)

Sale!

LC/APC to SC/APC Simplex Single-Mode LSZH Steel Shielded Optical Fiber Cable (Ref:3550) - Image 6

LC/APC to SC/APC Simplex Single-Mode LSZH Steel Shielded Optical Fiber Cable (Ref:3550)

Name: LC/APC to SC/APC Simplex Single-Mode LSZH Steel Shielded Optical Fiber Cable (Ref:3550)
Brand: ELFCAM
SKU: 3550
Availability: BackOrder
Rating: 4.85 (13 reviews)

ELFCAM|Ref. 3550|246 sales in the last 30 days

4,9/5 13 avis clients vérifiés

-13%14₉₉12⁹⁹ €ⓘPrice information

Price excl. tax : 10,83 €

Price before discount : 14,99 €

Tax included. Depending on your delivery address, tax may vary.

– 279₉₉ €

Quantité achetée	Remise
≥ 21	10 %
15 – 20	8 %
9 – 14	7 %
4 – 8	5 %

Longeur (m)

Clear

Garantie 5 ans – Retours sous 30 jours – Échanges sous 30 jours

Remboursement total sécurisé.

Livraison Standard Gratuite en France dès 35€. Livraison J+1 Chronopost : pour la France métropolitaine.

Retrait possible directement sur place à 94320 Thiais.

Conseils et étude personnalisés gratuits (plus d’informations sur votre scénario, personnalisation de votre demande, etc.). Un de nos experts vous recontactera sous 3 jours ouvrés.

SKU: 3550 Catégorie : Câble OS2 SC Simplex Brand : ELFCAM

100% Secure Payment · Privacy Protected

Free returns within 30 days · Guaranteed refund

12-month warranty · Dedicated support

🔒 Steel Armored Fiber Optic Cable SC/APC → LC/APC – Single-mode Simplex LSZH This steel armored fiber optic cable is designed to provide a stable, secure and durable connection. It features a SC/APC connector on one end and a LC/APC connector on the other, ideal for demanding professional and home installations. ⚡ Ultra Fast & Reliable Transmission Simplex single-mode fiber · Data transmission at very high speed, close to the speed of light · Perfect for telecom & data applications:CATV, ODF, FTTH, FTTB, FTTC
Steel shielding for reinforced protection · Sheath LSZH (Low Smoke Zero Halogen): low smoke emission, halogen-free · Ideal for indoor environments and sensitive installations
100% of cables are optically tested · Strict insertion loss control to ensure consistent performance · ITU G657A2 / G657B2 certifications
Cable diameter: 3.0 mm · Excellent flexibility, facilitating passage through ducts and restricted interior spaces
2 year warranty · Superior customer service, reliable and responsive

This item:

LC/APC to SC/APC Simplex Single-Mode LSZH Steel Shielded Optical Fiber Cable (Ref:3550)

12,99 €

LC/APC to LC/APC Simplex Single-Mode LSZH Shielded Steel Optical Fiber Cable (Ref:3311)

12,99 €

Fiber Optic Cable LC/APC to SC/APC Single Mode Simplex White (Ref:3588)

6,49 €

SC/APC to LC/APC OS2 Simplex Fiber Optic Cable (Ref:2516)

5,88 €

Prix total :

38,35 €

How to choose? Answer 3 questions and we'll show you the right model.

Got a question or a custom request? Ask a quote

Description

Steel-armoured LC/APC to SC/APC fibre patch cable, simplex single-mode OS2 9/125 µm, black LSZH jacket. The steel tape under the jacket protects it from rodents, crushing and moisture, indoors and outdoors — 16 lengths from 5 m to 300 m.

Steel armour

Corrugated steel tape under the jacket: resists rodent bites and crushing.

Up to 450 kg

Stated crush resistance up to 450 kg.

Indoor & outdoor

UV- and weather-resistant, halogen-free LSZH jacket.

LC/APC ↔ SC/APC

Two green angle-polished connectors, single-mode simplex.

7.5 mm bend radius

Stays flexible despite the armour: fits tight corners.

16 lengths

5 m · 7 m · 10 m … 200 m · 250 m · 300 m.

Structure: OS2 9/125 µm fibre, protective buffer, corrugated steel armour, LSZH jacket

A fibre protected by steel

Around the OS2 9/125 µm fibre, a corrugated steel tape absorbs knocks and bites, then a halogen-free, flame-retardant, UV-resistant LSZH jacket closes the cable. It resists rodents, crushing, moisture and insects.

Built for harsh environments

Machinery, factories, railways, churches, data centres: where an ordinary cable ends up crushed or chewed, the armoured cable keeps the link going, indoors and outdoors.

Simplex LC/APC and SC/APC, OS2 single-mode 9/125 µm

LC/APC on one side, SC/APC on the other

An LC/APC connector at one end, an SC/APC at the other: to link a device with an LC/APC port to an SC/APC socket or drawer, with no adapter.

Flexible despite the armour

The cable accepts a 7.5 mm bend radius: it follows skirting boards, goes round obstacles and fits in trunking without stressing the fibre.

Elfcam armoured LSZH cable 3.0 mm, ITU G657A2/B2 fibre

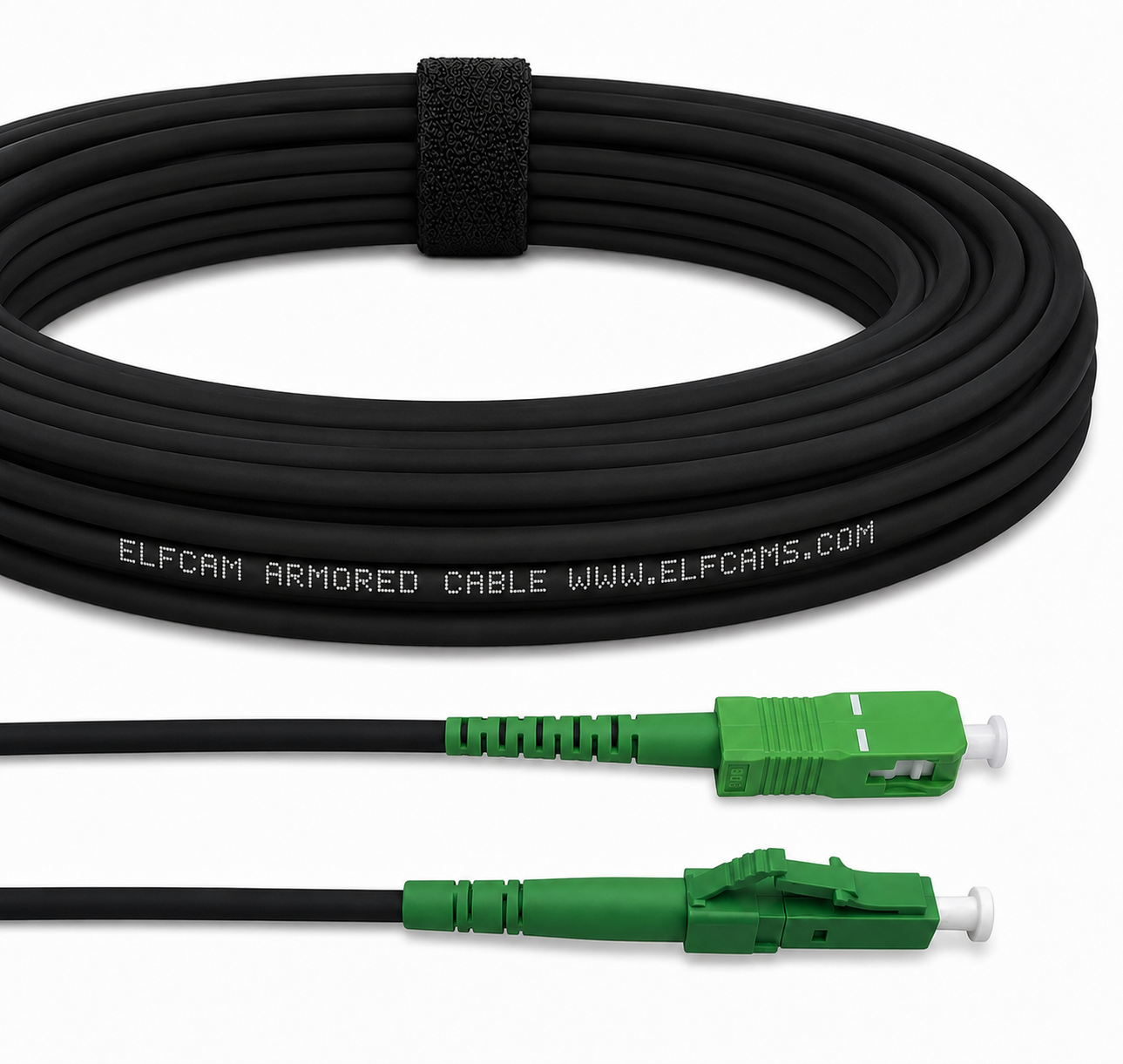

Coiled LC/APC to SC/APC simplex armoured patch cable

Rack / comms room

Armoured LC/APC – SC/APC simplex cable

Remote device (indoor or outdoor)

Steel-armoured cable, OS2 single-mode 9/125 µm, black LSZH jacket 3.0 mm, simplex LC/APC / SC/APC connectors. Available from 5 m to 300 m.

Number of fibres	1F
Fibre type	G657A2
Tight buffer - material	LSZH
Tight buffer - colour	White
Tight buffer - diameter	0.9±0.05mm
Strength member - material	Aramid yarn
Jacket - material	LSZH
Jacket - colour	Black
Jacket - diameter	2.9±0.1mm
Minimum bend radius (mm) - static	10D
Minimum bend radius (mm) - dynamic	20D
Maximum tensile load - long term	200 N
Maximum tensile load - short term	450 N
Crush load (N/100mm) - long term	500
Crush load - short term	1000
Storage / transport temperature (°C)	-20 ~ +70
Operating temperature (°C)	-20 ~ +70
Attenuation (cable) 1310nm	≤0.4 dB/km
Attenuation (cable) 1550nm	≤0.3 dB/km
Attenuation vs. wavelength (max. difference) 1285–1330nm	≤0.03 dB/km
Attenuation vs. wavelength (max. difference) 1525–1575nm	≤0.02 dB/km
Zero-dispersion wavelength	1300–1324 nm
Zero-dispersion slope	≤0.092 ps/nm²·km
PMD (max. individual fibre)	≤0.2
Link design value (M=20, Q=0.01%)	≤0.1
Typical value	0.04
Cable cut-off wavelength λ∞	≤1260 nm
Mode field diameter (MFD) 1310nm	8.4–9.2 μm
Mode field diameter (MFD) 1550nm	9.8±0.5 μm
Effective refractive index 1310nm	1.466
Effective refractive index 1550nm	1.467
Point discontinuities 1310nm	≤0.05 dB
Point discontinuities 1550nm	≤0.05 dB
Cladding diameter	124.8±0.7 μm
Cladding non-circularity	≤0.7 %
Coating diameter	245±5 μm
Coating-cladding concentricity error	≤12.0 μm
Coating non-circularity	≤6.0 %
Core-cladding concentricity error	≤0.5 μm
Bending radius (curl)	≥4 m

Product	SC/APC-SC/APC Armoured	SC/APC-SC/UPC Armoured	SC/APC-SC/APC Standard	SC/APC-SC/UPC Standard	LC/APC-LC/APC Armoured	LC/APC-SC/APC Armoured	LC/UPC-LC/UPC OS2 Duplex Armoured	LC/UPC-LC/UPC OM3 Duplex Armoured

REF	1366	1385	319	345	3311	3550	5221	4511
Fibre type	9/125µm G657A2	9/125µm G657A2	9/125µm G657A2	9/125µm G657A2	9/125µm G657A2	9/125µm G657A2	OS2 9/125µm	OM3 50/125µm
Connector A	SC/APC	SC/APC	SC/APC	SC/APC	LC/APC	LC/APC	LC/UPC	LC/UPC
Connector B	SC/APC	SC/UPC	SC/APC	SC/UPC	LC/APC	SC/APC	LC/UPC	LC/UPC
Insertion loss	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.3dB
Return loss	≥60dB	≥60dB	≥60dB	≥60dB	≥60dB	≥60dB	≥50dB	≥35dB
Cable structure	Armoured steel	Armoured steel	LSZH	LSZH	Armoured steel	Armoured steel	Armoured steel	Armoured steel
Outer diameter	3mm	3mm	3mm	3mm	3mm	3mm	—	—
Colour	Black	Black	White	White	Black	Black	Black	Black
